> For the complete documentation index, see [llms.txt](https://frinn.gitbook.io/custom-machinery-1.21/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://frinn.gitbook.io/custom-machinery-1.21/recipes/requirements/structure.md). # Structure Structure requirement is used to make the recipe need a structure around the machine to be processed. The structure can be any size but blocks in unloaded chunks will not be found and the recipe will not start. {% hint style="info" %} To make a structure requirement without headache use the in game "Structure Creator" tool. {% endhint %} The requirement type of structure requirement is : `"custommachinery:structure"`. ### Properties The structure requirement has 3 mandatory properties and 3 optional properties. #### Mandatory properties ```json "type": "custommachinery:structure" //Mandatory to define a structure requirement. ```
Pattern #### Name : `pattern` #### Description : A list of list of string.\ Each character of the String represent a block, starting from the left and going to the right.\ Each String in the List represent a row, starting from the back and going to the front.\ Each List of String in the list represent a floor, starting from the bottom and going to the top. **All String must have the same number of characters, and each floot must have the same number of String** **The pattern must have exactly one 'm' character, representing the machine position.** #### Example : ```json "pattern": [ ["aaa"], ["ama"], ["aaa"] ] ``` A 3x3x1 vertical ring structure of the same block, around the machine block.
Keys #### Name : `keys` #### Description : A map of type : `"character": "block"`. The character key must be unique and can't be 'm' (reserved for the machine block). The block is described the same way as in the "/setblock" command : `"namespace:id[property1=value,property2=value...]{tag1:value,tag2:value...}"` The \[properties] and {tag} are optional. **The character 'm' is already taken by the machine block and can't be used for anything else.** Tags can also be specified using the prefix `#`. Example: `"#c:stones"` A key can be reversed using the prefix `!`. Example: `"!stone"` (Accept any block but stone) #### Example : ```json "keys": { "a": "minecraft:stone" } ```
#### Optional properties
Action #### Name : `action` #### Description : Define the behavior of this structure requirement, can be any of these values : * `check` : Just check if the structure is present. * `break` : Break an existing structure and drop its blocks. * `destroy` : Destroy the structure and **do not** drop its blocks. * `place_break` : Place the structure and drop the replaced blocks. * `place_destroy` : Place the structure and **do not** drop the replaced blocks. #### Default : `check` #### Example : Set the structure requirement to break the structure : ```json "action": "break" ```
Chance #### Name : `chance` #### Description : A double between 0.0 and 1.0 that define the chance of the requirement to be processed. #### Default : 1 The requirement will always be processed. #### Example : ```json "chance": 0.7 ``` The requirement will have 70% chance to be processed.
Delay #### Name : `delay` #### Description : A double value, between 0.0 and 1.0 that represents at which time of the recipe the requirement action must be executed.\ A delay of 0.5 represent half of the recipe, 0.25 a quarter etc... #### Default : 0 The requirement action will be executed on start if mode is input or on end if mode is output. #### Example : ```json "delay": 0.33 ``` The requirement action will be executed when the recipe progress time is at (approximatively) a third of the recipe total duration. #### Note : If delay is specified the requirement will be only executed at the specified delay, independently of the mode property.\ This property have no effect if the `action` is set to `check` as this action is executed each tick of the recipe.

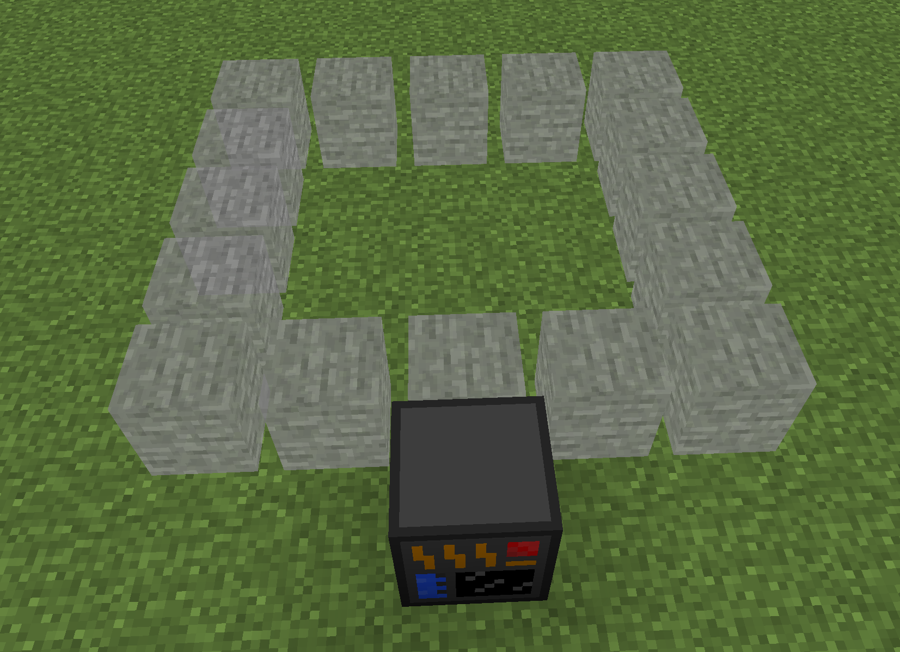

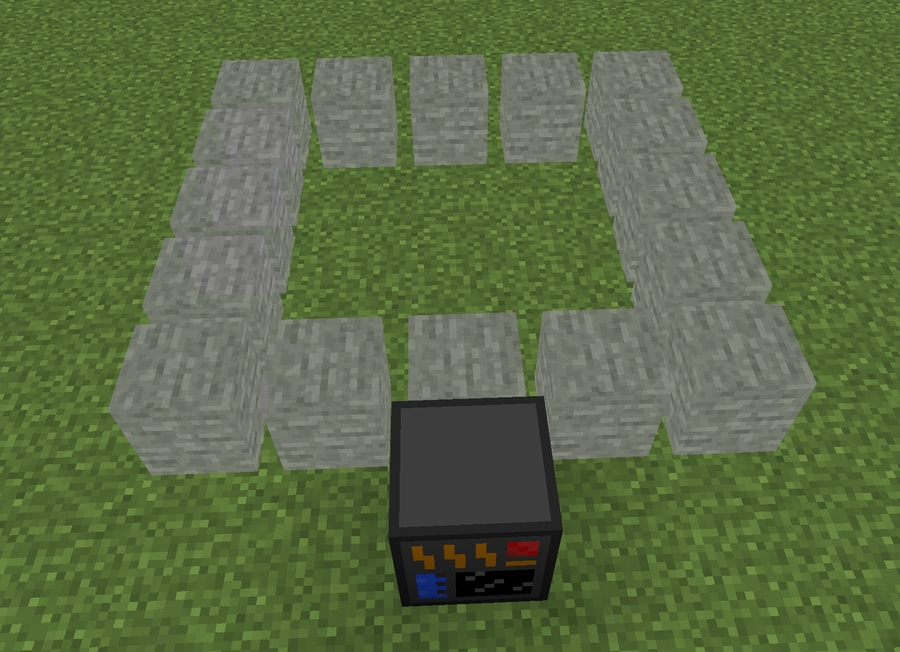

### Example How to define a structure requirement: ```json { "type": "custommachinery:structure", "pattern": [ [ "sssss", "s s", "s s", "s s", "sssss", " m " ] ], "keys": { "s": "minecraft:stone" } } ``` Result : ![structure\_requirement](https://github.com/Frinn38/Custom-Machinery/raw/1.16.5/wiki/structure_requirement.png) --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://frinn.gitbook.io/custom-machinery-1.21/recipes/requirements/structure.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
